AEMC Instruments 2153.62 - DL914 Data Logger

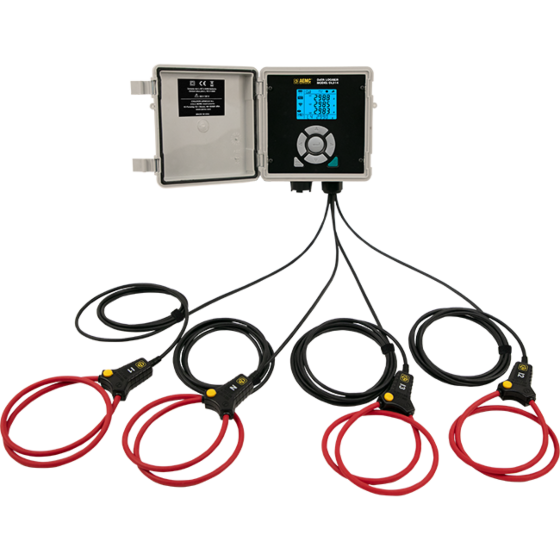

The Data Logger Model DL914 is a 4-channel AC current data logger with four integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around a 7.64-inch conductor. The DL914 has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors are water resistant rated to IP 67. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView® software included with the unit. However, most of the setup can also be done from the keypad and LCD display on the instrument. The measurements are stored in internal nonvolatile memory. Data storage rates as fast as once per second.

Communication is done through a USB port or wireless Wi-Fi and it is powered by two rechargeable NiMH batteries. The instrument can also be externally powered through the USB plug.

Features:

• Includes integral 24-inch flexible current sensors
• Current measurements from 500 mA up to 3600 A
• Frequency measurements
• DataView® software for data storage, real-time display, analysis and report generation
• Rated 600 V CAT IV, 1000 V CAT III, complies with IEC 61010-2-032
• Rechargeable battery and USB power options
• Flame retardant, lightweight, compact, waterproof IP67
• View real-time measurements with LCD display
