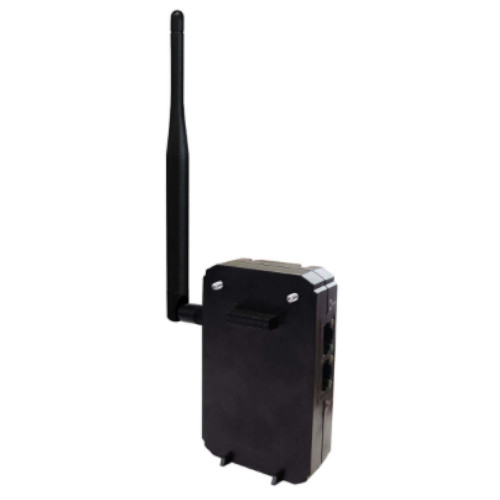

Description

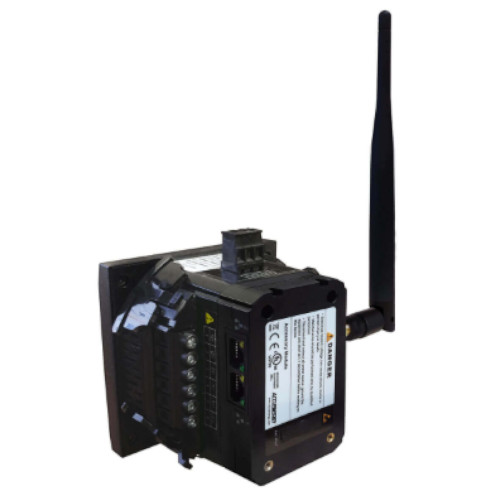

The Accuenergy Communications modules for the Acuvim-II series power meters were designed for their flexibility and easy expansion of the Acuvim-II. A maximum of 1 communication module can be used per meter.

Features:

• Native support of Ethernet/IP protocol, seamless integration with Allen Bradley and Rockwell Systems
• IEC 61850 protocol 2nd Edition
• IPV6 and IPV4 dual IP network support allows for more connected devices
• Custom Modbus register list to group key parameters continously
• Maintain high availability by RSTP protocol with two ports connect to same subnet
• Log Max, Min and Average on all parameters at all logging intervals
• Firmware OTA update
• Daisy-chain Ethernet ports (RSTP Protocol)
• Support for WiFI WPA, WPA2 Enterprise security protocol
• Remote meter access via SerialNumber.accuenergy.io
• Dual Ethernet RJ45 port with individual network configuration
• Dual Ethernet ports and WiFi work simultaneously with different networks and data acquisition systems
• COMtrade format for waveform capture
• 8GB onboard memory with 1-second interval datalogging capabilities
• Industry-leading 100ms and 40ms response rate via Modbus-TCP/IP protocol
• Secure HTTPS data encryption to cloud server
• SSL encrypted webserver plus TLS 1.2 compliance for industry-leading cybersecurity standard
• Metering data backup log to avoid data loss during network downtime
• Support industrial, utility and substation protocols IEC 61850, DNP 3.0 V2, Modbus-TCP/IP, SNMP, HTTP/HTTPs Post, FTP & SNTP
• Built-in sFTP server for data-log storage and retrieval.
• Web accessible graphical display of historical data trends for all parameters for analysis
• WiFi supports Access Point mode and Station mode for both direct connection/configuration and public WiFi network connection

Note:

• MAX. of 3 I/O Modules per meter
• Only 1 Communication Module per meter
• MAX 2 of the same type of I/O Modules per meter
