Description

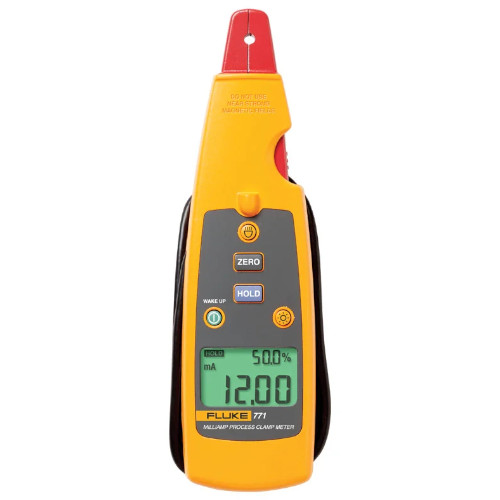

The Fluke Electronics model 771 is a Milliamp Process Clamp-on which will measure 4-20 mA signals without breaking the loop. This compact clamp meter is ideal for PLC and control systems analog I/O. The detachable clamp with extension cable allows you to take measurements in tight locations, and the built-in spot light illuminates hard to see wires in dark enclosures.

Features:

• Measure mA signals for PLC and control system analog I/O
• Measure 4-20 mA output signals from transmitters without breaking the loop
• Best in class 0.2% accuracy
• Resolution and sensitivity to 0.01 mA
• Hold function captures and displays changing measurements
• Dual backlit display with both mA measurement and percent of 4-20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10-50 mA signals in older control systems using the 99.9 mA range
• Automatic power off after 15 minutes and 2 minute automatic off for backlight and spotlight

Additional Info

• Process
