Description

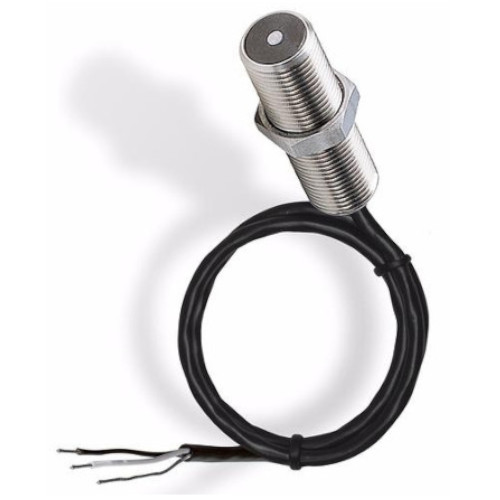

The Monarch Instruments M-190W Magnetic Sensor is a Self Powered gear sensor that is most popular for use with 60 tooth 20 pitch gears. The sensor mounts within 0.005 inches (0.127 mm) of a minimum 0.106 inch (2.692 mm) diameter ferrous target. The sensor self-generates an AC signal and requires no power from the display module.

6180-012 M-190W Specifications:

• Speed Range: 1-99,999 RPM
• Operating Distance: 0.005" (0.127 mm) gap from target
• Minimum Target Size: 0.106" (2.692 mm) minimum diameter
• Power required: None – Self Generating AC voltage
• Output Signal: 190V P-P maximum
• Pole Piece Magnet Diameter: 0.106 inch (2.692 mm)
• Operating Temperature: -100° to 225° F (-73° to 107° C)
• Standard Cable Length: 8 feet (2.438 m)
• Dimensions: 2.0" (L) x 0.625" (50.8 x 15.875 mm)
