Description

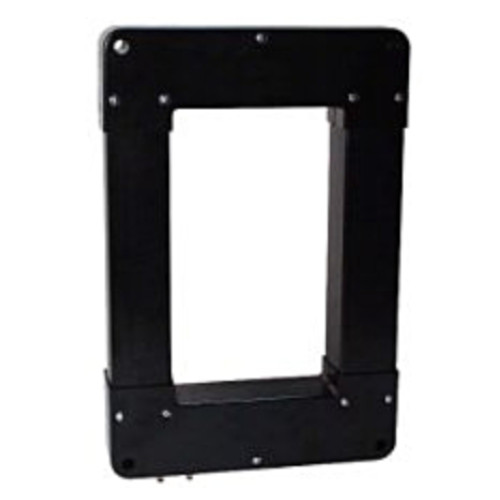

The Ram Meter Inc. 500T series is a split-core current transformer which is ideal for virtually all metering applications. These current transformers have an insulation rating of 600V BIL and and a continuous thermal current rating factor of 1.33 at 30° and 1.0 at 55°. The 500 series features 8-32 brass stud terminals, can measure from 300A up to 6000A and is available with multiple window sizes to meet most applications.

Features:

• Split-core design helps eliminate the need for disconnecting wires
• Insulation Level: 0.6 kV BIL, 10kV full wave
• Frequency: 50-400 Hz
• Current ranges from 300A to 6000A
• Multiple window sizes to meet most applications

The Ram Meter Inc. 76SFT series of current transformers have a 3.00″ diameter window size and a 600V, 10kV BIL insulation class. And with the 200-2000 Amp current range, these current transformers are ideal for all types of current metering applications.

Features:

• 3.00″ Window Diameter
• 600V, 10 kV BIL full wave Insulation Level
• Available from 200:5A up to 2000:5A ratio
• Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher and regular nut.
• Available in 5 convenient styles: SFT, RT and RBT (with terminals)
  or RL and RBL (with leads)

Additional Information:

Check out our technical bulletin on INSTALLING CURRENT TRANSFORMERS

Check out our technical bulletin explaining PRIMARY & SECONDARY TURNS
