Description

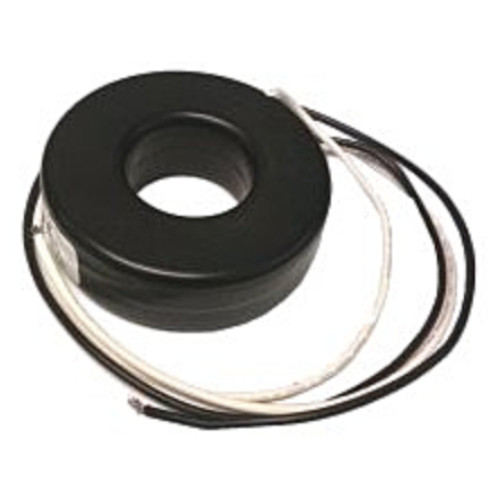

The Ram Meter Inc. Model 5 series of current transformers has a 1.56" diameter window size and a 600V, 10 kV BIL insulation class. And with the vast 50-1200 Amp current range, these current transformers are ideal for all types of current metering applications.

Features:

• 1.56" window diameter
• Ideal for ammeters, wattmeters, and cross current compensation applications
• 600V, 10kV BIL insulation class
• Available from 50:5 ACA to 1200:5 ACA current ratios
• Both SFT, SHT and RT (terminals) styles available as well as
  SFL, SHL and RL (leads) styles

Additional Information:

Check out our technical bulletin on INSTALLING CURRENT TRANSFORMERS

Check out our technical bulletin explaining PRIMARY & SECONDARY TURNS
