Description

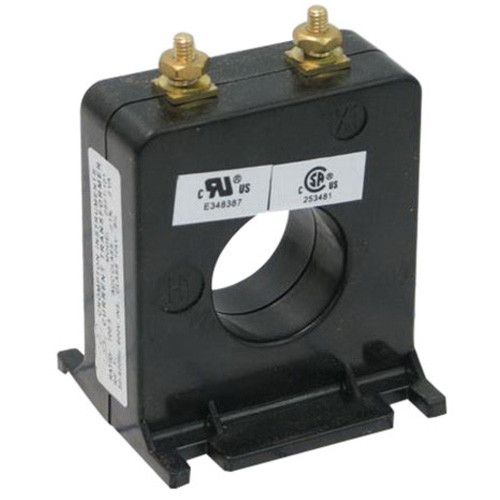

The Ram Meter Inc. 76SFT series of current transformers have a 3.00″ diameter window size and a 600V, 10kV BIL insulation class. And with the 200-2000 Amp current range, these current transformers are ideal for all types of current metering applications.

Features:

• 3.00″ Window Diameter
• 600V, 10 kV BIL full wave Insulation Level
• Available from 200:5A up to 2000:5A ratio
• Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher and regular nut.
• Available in 5 convenient styles: SFT, RT and RBT (with terminals)
  or RL and RBL (with leads)

Additional Information:

Check out our technical bulletin on INSTALLING CURRENT TRANSFORMERS

Check out our technical bulletin explaining PRIMARY & SECONDARY TURNS
