Description

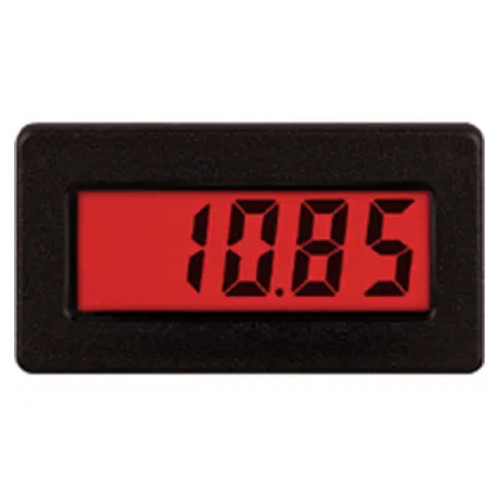

The Red Lion CUB4LP40 is a loop-powered process indicating digital panel meter, using a 4-20 DCmA or 10-50 DCmA input signal as operating power. The input signal is also used to power the backlighting. The CUB4LP40 has a 3½-digit LCD display with 0.6″ (12.2 mm) high digits and a DIP switch selectable decimal point. The CUB4LP40 display is available in positive image reflective (dark digits, reflective background) or positive image transflective (dark digits, illuminated background) with red backlighting.

These meters are contained in a lightweight, high impact plastic case with a clear viewing window. When properly installed, the sealed front panel meets NEMA-4X/IP65 specifications for wash-down and dusty environments.

Features:

• Dual Range: 4-20 DCmA or 10-50 DCmA
• Loop Powered Meter
• 3½-Digit 0.6″ (12.2 mm) High Digits
• Red Positive Image LED Backlighting
• Front Panel, Remote Reset
• Span and Offset Capability
• Negative and Overrange Indication
• Selectable decimal point position
• NEMA-4X/IP65 Sealed Front Panel Bezel
• Fits standard cut-out 2.68″ (68 mm) X 1.30″ (33 mm)
