Description

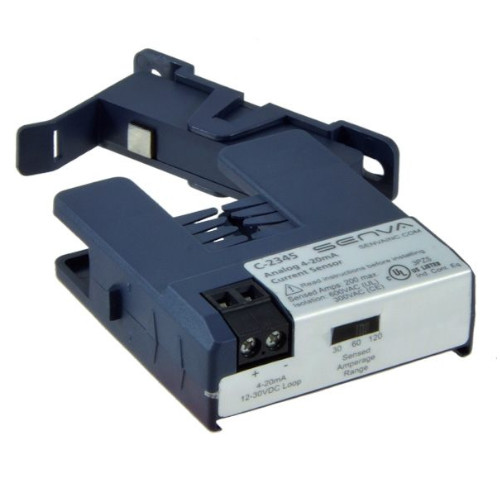

The Senva C-2345-L is a split-core transducer which measures AC current and provides a proportional output for load trending and control. The C-2345-L features selectable ranges to make scaling easy and to reduce inventory levels while the optional command relay (sold separately) makes this an extremely versatile transducer, all at a very low, affordable cost. Ideal for Load Trending, Motor Control, Process Control, Fan/Pump Status, Motor Load Jamming and Lighting Load Level applications.

Features:

• C-2345-L = 0-5/10/20 ACA / 4-20 DCmA
• Window Size = 0.75″ x 0.75″
• Split-Core Design
• Selectable ranges makes scaling easy and reduces inventory
• Mount sensor without removing conductor for installation savings
• Clamp on conductor with iris or use detachable base to screw or DIN mount
• Larger 0.75” aperture accommodates oversize conductors
• Reliable and cost-effective
• Industry leading 7 year limited warranty

Check out the optional Senva Command Relays for added flexibility and performance.
