Description

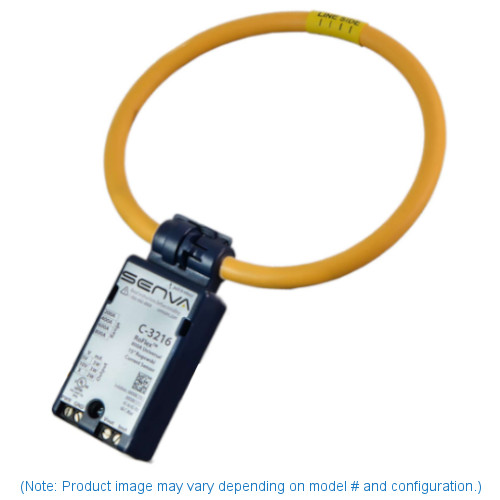

The Senva C-3216 is a Rogowski coil analog transducer which measures high amperage AC current and provides a proportional output for load trending and control. The Rogowski coils offer wide amperages without saturation effects common to iron core sensors. Selectable ranges ensure excellent resolution.

Features:

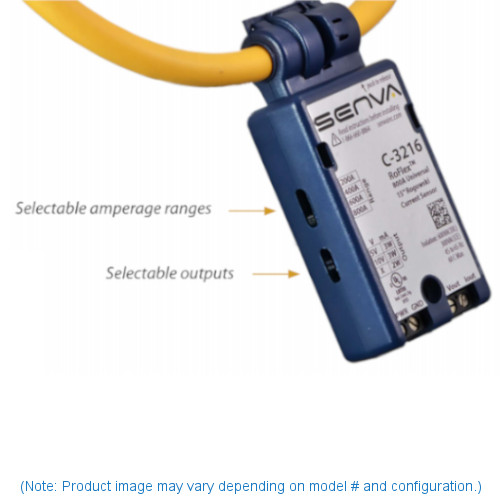

• Four selectable ranges per model
• C-3216 = 0-200/400/600/800A (Selectable)
• 15.00″ Rogowski Coil for easy installation
• Universal Output: 0-5DCV/0-10DCV/4-20DCmA (loop & 3-wire)
• Space savings, easy to install & compatible with any system
