Description

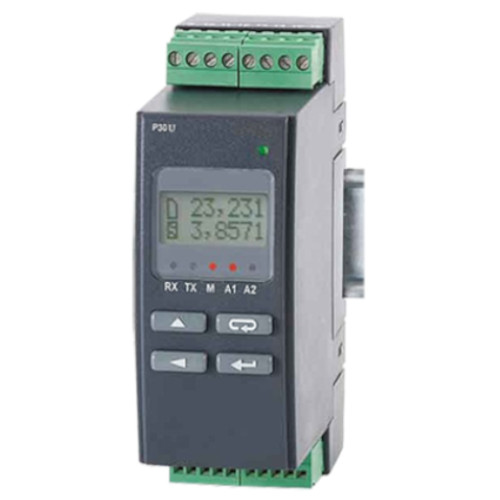

The Sifam Tinsley P30U is a Universal Programmable Transducer which accepts a variety of signals including AC Current, AC Voltage, Frequency, Temperature and RTD and converts these inputs into a load independent DC Current or a load independent DC Voltage signal proportional to the measured value. The P30U is available with a 0-20 DCmA, 4-20 DCmA or 0-10 DCV output and can also be ordered with an additional relay or power supply output and with an external SD card slot or an Ethernet interface.

Features:

• Universal Inputs: ACA, ACV, Freq, RTD, Temperature
• Mathematical functions for each input
• Individual characteristic (up to 21 points) for each input
• Transducer configuration using buttons, RS485, interface and eCon Software, WWW server
• 1 or 2 alarm output (optional)
• Power supply of object transducers 24V D.C (optional)
• External SD card slot (optional)
• Ethernet Interface with Internal memory (optional)
