Description

The Sifam Tinsley RE77 is a compact (72 x 72 mm) PID controller specifically designed for universal input measurements from RTD’s, thermocouples and analog inputs such as 4-20 DCma, 0-5 DCV and 0-10 DCV. The RE77 is equipped with an innovative, smart PID & dual display for PV & SP.

This controller is designed for temperature control and works directly with resistance sensors, thermoelectric sensors or analog inputs. The RE77 is equipped with outputs that allow for control and alert signalization. Control output can be programmed for PID or an ON/OFF algorithm.

Features:

• 4-Digit Dual Display
• Compact (72 x 72 mm) Size
• Universal Measuring Input:
• Thermocouple: J, T, K, S, R, B, N, E
• RTD: PT100 (2 or 3 wire), Pt1000
• Analog Input: 4-20 DCmA, 0-5 DCV, 0-10 DCV
• ON/OFF Control, PID Control
• Relay Output or SSR Output
• Auto Tuning Function
• Timer Function

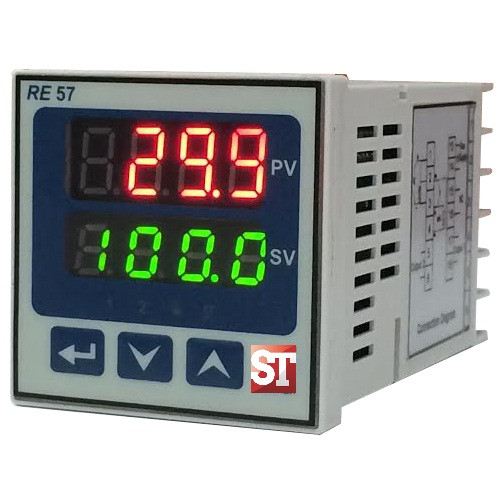

*Please NOTE: The RE77 specs & functionality are exactly the same as the RE57. The only difference is the size. The RE57 = 48×48 mm whereas the RE77 is 72×72 mm.*
