Description

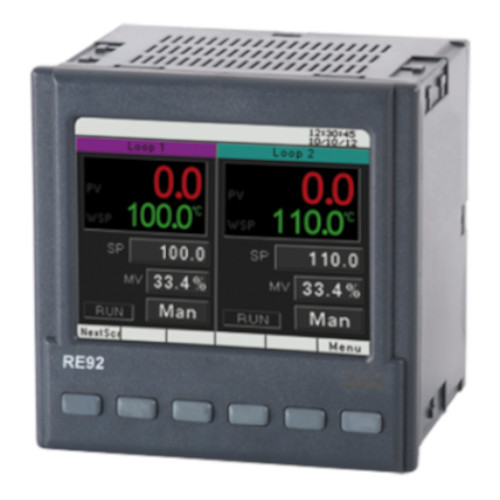

The Sifam Tinsley RE92 is an advanced dual-loop PID controller which was designed for demanding industrial applications. The RE92 can control 2 controlled objects independently or control 2 physical values in one object. The RE92 is available with a wide range of sensor inputs, analog signals & a resistance input and comes in single and dual input channels with additional auxiliary input facility.

Features:

• 3.5″ Full-Color Graphic Screen with Luminosity Control
• Universal Measuring Input:
• Thermocouple: J, T, K, S, R, B, N, E
• RTD: PT100 (2 or 3 wire), Pt500, Pt1000
• Analog Input: 4-20 DCmA, 0-5 DCV, 0-10 DCV
• Resistance Input
• Binary input control
• Set point value: fixed value, programmed or from an additional input
• ON/OFF , PID, PID step-by-step control (valve control) or PID of heating-cooling type
• Soft start
• 8 types of alarms
• Function of bi-stable alarm (LATCH)
• Timer function
• Measurement of heater current and heater burning control or short-circuit of the control element (e.g. SSR)
