Description

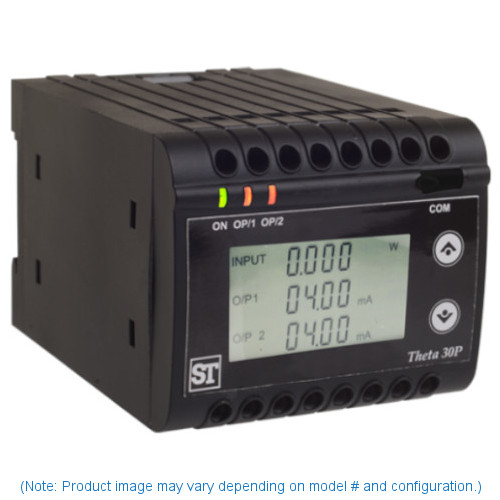

The Sifam Tinsley THETA 30 is a compact, multi-function panel mount power quality transducer which measures, calculates and displays major electrical parameters of single and three-phase power systems and converts them into a load independent DC Current or a load independent DC Voltage signal proportional to the measured value.

The THETA 30 is a field programmable unit and can be configured by the user with a 1A or 5A current range and a 100-500V voltage range. This unit measures Active Power, Reactive Power, Apparent Power, Phase Angle and Power Factor and will give a 0-1 DCmA, 0-20 DCmA, 4-20 DCmA, or 0-10 DCV output.

The THETA 30 can be ordered with or without a display, with single or dual outputs and with or without RS485 communication.

Features:

• TRMS Measurements
• Fully on-site programmable 1A/5A AC Current input range & 100-500V AC Voltage input range
• On-site Configurable as Active / Reactive / Apparent Power / Phase Angle / Power Factor
• Choice of 0-1 DCmA, 0-20 DCmA, 4-20 DCmA or 0-10 DCV outputs
• Available in Single or Dual output type
• Accuracy Class 0.2 ( IEC / EN 60688) for Power
• Accuracy Class 0.5 ( IEC / EN 60688) for Phase Angle / Power Factor
• Seven Segment LCD Display (optional)
• RS-485(Modbus) Communication (optional)
