Description

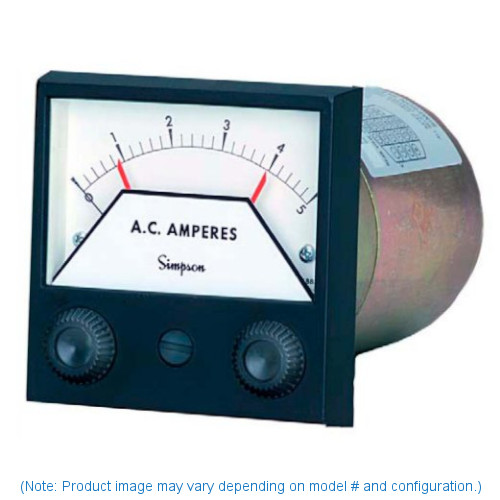

The Simpson Electric 3300 Series analog meter relays offer a wide variety of applications in control, alarm and limit use. Photo conductor sensing eliminates all interference with the indicating meter. These relays incorporate an amplifier input that drives a rugged high-torque pivot and jewel meter. Metal-cased “Rugged Seal” construction withstands rigorous environmental conditions. The metal cover with a drawn steel plated rear case gives complete magnetic isolation for steel panel mounting. In addition, each meter is moisture, dust and dirt proof for use in wash-down areas. Fail-safe circuitry opens output relays in the event of power failure. Available in both 3½” and 4½” sizes, these meters feature both single and dual set point options.

SPECIFICATIONS:

3300 Series Sizes & Model #’s:

3.5″ – 3343AIXA (AC) / 3323AIXA (DC)

4.5″ – 3344AIXA (AC) / 3324AIXA (DC)

Accuracy: AC: +/-3% of full scale, DC: +/-2% of full scale

Tracking: +/- 3%

Overload:

AC: 7 Amps for 1 sec. intervals; 7 Amps continuously.

DC: 10 times the F.S. value for 1 sec. intervals, 1.5 times the F.S. value continuously

Response Time: 1.5 seconds maximum

Control Point(s) Adjustments:
Single / High Limit: 0-100% of arc
Double / Low Limit: 0-95% of arc, Double High Limit: 5-100% of arc
Adjustable to within 4° of each other

Switching: Within 1% of indication

Differential: “On”, “Off” difference is within 0.5% of full scale

Auto / Manual Reset:
Latching function can be enabled independently for each relay by removing jumpers on terminal block.

Contacts / Output Relay:
DPDT relay contacts for each control point. Each set of contacts rated at 5 amps, 120 VAC resistive.

SPECIAL / CUSTOM RANGES & SCALES

At Ram Meter Inc. we can build virtually any meter for your application! Wether you’re looking for a non-standard input range, a custom scale or if you want a company logo printed on your meter, give us a call or fill out our contact form and we will make sure you are taken care of right away.
