Description

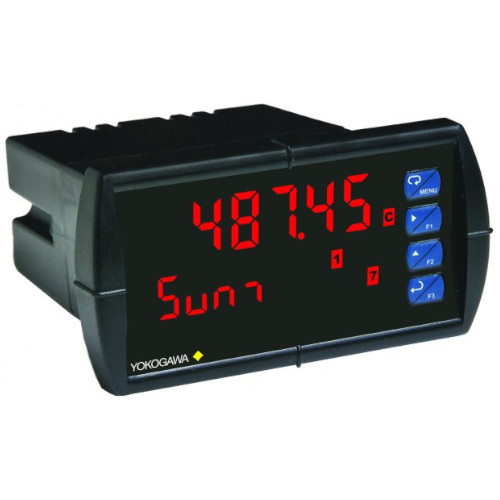

The Yokogawa YPP6060 PROPLUS digital process meter comes equipped with features and functionality that make it one of the most advanced process meters available. The YPP6060 is a dual input meter, combining 2 independently programmed analog inputs with powerful math functions to allow the meter to handle complex math requirements which are common in the process industry. In addition, the YPP6060 features a dual-line 6-digit display, function keys, Modbus serial communications, advanced signal input conditioning and optional expansion modules.

• Dual Process Inputs: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and +/-10 V
• Math Functions: Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
• 32-Point, Square Root, or Exponential Linearization
• Multi-Pump Alternation Control
• Isolated 24 VDC at 200 mA Transmitter Power Supply
• Large Dual-Line 6-Digit Display, 0.60″ & 0.46″
• Sunlight Readable Display Models
• NEMA 4X, IP65 Front
• Programmable Display & Function Keys
• Universal 85-265 VAC, or 12/24 VDC Input Power Models
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, RS-485 Serial Communication Options
• Modbus® RTU Communication Protocol Standard
• Free PROPLUS Software for Operation, Monitoring, and Programming
