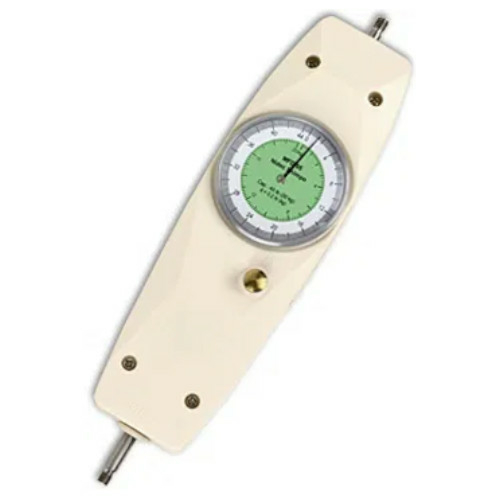

Shimpo Instruments MFD-04 Mechanical Force Gauge w/Dual Scale - 22 lb (10 kg) Force Capacity


The Shimpo Instruments MFD-04 is so simple, anyone can use it! The MFD-04 is an economical mechanical force gauge with dual kg/lb scales which is excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force operation mode features an easy push-button reset, especially helpful for repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MFD-04 was ergonomically designed for handheld use, but may also be used with the optional handle, great for higher loads. Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected. All MFD-04 gauges include a protective carrying case, calibration certificate and attachment adapters.


  • MFD-04: Mechanical Dual Scale Force Gauge with 22 lb (10 kg) force capacity
  • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces – Only one gauge required
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Peak Mode Reset is ideal for repetitive peak testing applications
  • Compact, light-weight, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands

Additional Info

  • Mechanical
More Information
Features Mechanical
Manufacturer Shimpo Instruments
Measurement 22 lb (10 kg)
Type Force Gauges
Additional Skus MFD04
