Texmate BN-45 Dimmable Short Depth DC Powered Process Meters

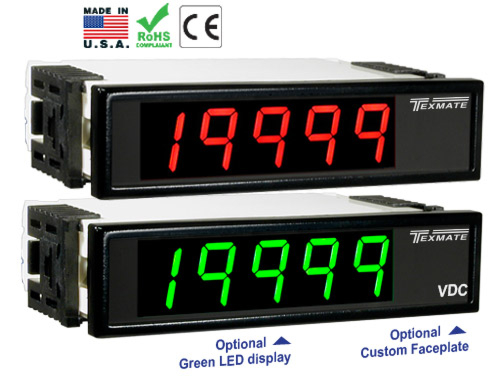

The BN-45 is a 4 1/2 digit voltmeter in a compact 96x24 mm case with non-isolated 5VDC power.Another version of the BN-45, the BN-45I with internally isolated 9-36 VDC power, is also available.The case has a short depth of just 2.83 inches (72 mm) behind the panel. The meter has three user-selectable ranges of 2V, 20V and 200V.The BN-45 may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Infor-mation below). The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered.Display Segments Test, Display Blank and Hold Reading are standard features
