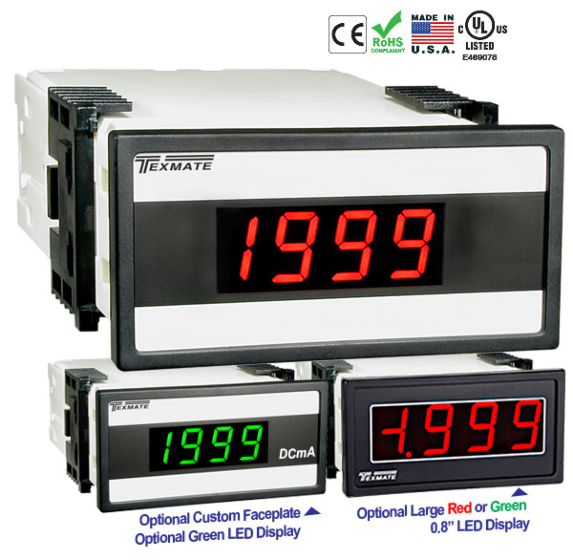

Texmate DX-35-DCA Lynx Panel Meter 20/50/100/200mV DC Full Scale

The DX-35-DCA is a cost-effective, low DC voltage measuring meter with four header selectable full scale ranges of 20mV, 50mV, 100mV(standard) and 200mV. The meter is particularly suited for measuring DC current using 50mV standard current shunts. After selecting a new range, re-calibration is required. Display Hold and Display Test functions are also provided. The standard meter has a high efficiency red LED.

Features:

• Pre-calibrated I-Series Input Signal Conditioning modules, that have span or zero potentiometers, can be interchanged between any I-Series compatible meter, without recalibration, because all of the analog scaling and reference circuitry is self-contained within the module.
• 24 V DC excitation is available to power external transmitters and 5 or 10 V DC excitation is available for strain-gages, load cells and resistance bridge type sensors.
• AC/DC Auto-sensing power supply. For voltages between 85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).
• Standard red or optional green or super bright red 3 1/2-digit 0.56” LED with display range –1999 to 1999 (4000 counts).
• Red or green 0.8" LED large display option.
• Display brightness may be externally controlled.
• 1/8 DIN (96 x 48mm ) case easily mounts in thin or thick panels (up to 2’). May be ordered with optional extra fire resistant metal case.
• Optional NEMA-4X, IP-65 hinged, lockable, water and dust proof cover.
• UL Listed
