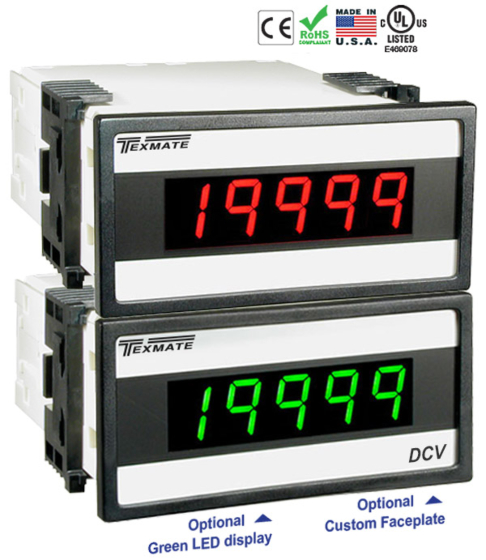

Texmate DX-45-DCV 2V/20V/200V DC Meter 4 1/2 Digit with 0.56”

The DX-45-DCV is a reliable cost-effective DC voltage measuring meter with three header selectable full scale ranges of 2V, 20V and 200V. This meter may be used to measure single-ended as well as differential signals and is easily scaled to any desired process engineering unit. After selecting a new range, re-calibration is required. Display Hold and Display Test functions are also provided. The standard meter has a high efficiency red LED display

Features:

• Pre-calibrated I-Series Input Signal Conditioning modules, that have span or zero potentiometers, can be interchanged between any I-Series compatible meter, without recalibration, because all of the analog scaling and reference circuitry is self-contained within the module.
• 24 V DC excitation is available to power external transmitters and 5 or 10 V DC excitation is available for strain-gages, load cells and resistance bridge type sensors.
• AC/DC Auto-sensing power supply. For voltages between 85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).
• Standard red or optional green or super bright red 3 1/2-digit 0.56” LED with display range –1999 to 1999 (4000 counts).
• Red or green 0.8" LED large display option.
• Display brightness may be externally controlled.
• 1/8 DIN (96 x 48mm ) case easily mounts in thin or thick panels (up to 2’). May be ordered with optional extra fire resistant metal case.
• Optional NEMA-4X, IP-65 hinged, lockable, water and dust proof cover.
• UL Listed
