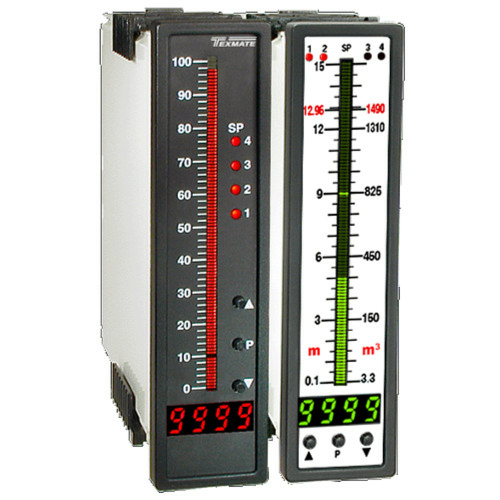

Texmate FL-B101D40 Series 4-Digit Bargraph Meter

Call for Price
SKU
FL-B101D40 Series*

The Texmate FL-B101D40 Series are 101 segment, 4.5-Digit, LED Bargraph meters housed in a 9/64-DIN casing. These smart mono-color or tri-color digital bargraph meters have four fully programmable set-points for monitoring, measuring and controlling applications.

The FL-B101D40 is available with more than 40 plug-in input signal conditioners, including: AC/DC Current, AC/DC voltage, frequency, process, pressure and temperature and can be ordered with various types of analog and relay outputs.

Features:

  • More than 40 plug-in input signal conditioners
  • Measures AC/DC current, AC/DC voltage, frequency, process, pressure, temperature and more
  • 4-Digit LED Display with a range of -1999 to 9999
  • Programmable Mono-color (Red or Green) or Tri-color (Red-Green-Orange),
    101 Segment bargraph
  • Front-panel LED annunciators provide indication of set-point status
  • Auto-sensing AC/DC Power Supply for voltages between
    85-265 VAC/95-270 VDC or 18-48 VAC/10-72 VDC
  • Two 5A Form A and Two 10A Form C Relays Available
  • Vertical or Horizontal mounting
  • Optional NEMA-4X Front Cover

Additional Info

  • Panel Mount
More Information
Display Digital
Input AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Process, Temperature
Manufacturer Texmate
Power ACV, DCV
Type Bargraph Meters
Additional Skus FL-B101D40, FLB101D40
Additional Details

*Please CONTACT US for pricing and availability!
