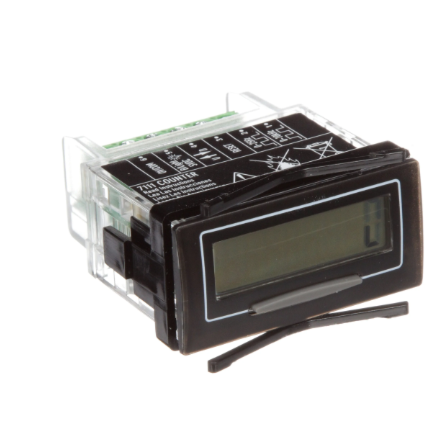

Trumeter 7111 8 digit LCD counter - dry contact input, front panel (disable available) and remote reset, 1/32nd DIN housing, backlight, screw terminals

The 7111 series counter is feature packed with an unrivalled performance ratio, suitable for thousands of applications. Use of the latest CMOS circuitry achieves an expected battery life of 10 years.

Features:

• Connection using built in screw terminals (on all models).
• 9mm black high contrast LCD display.
• Backlight (externally powered) 5VDC.
• Counting up to 10kHz. (7111)
• 7111HV permits triggering from any voltage between 10-240VAC or 10VDC-110VDC ±10%.
• Contact closure/open collector low speed count input with integral de-bounce circuitry (7111 model).
• Choice of mounting available, front panel with supplied bezel or rear mounting clip.
• Front panel can be sealed to IP65.
• Installation is simplified - all models have screw connections on rear for quick and simple connection.
• CE, UL and cUL approved.
