Ram Meter Inc. - July 2021 Newsletter

July 21st, 2021:
We have just released our July 2021 Newsletter. Read on to see what we have in store this month.

Perhaps you've been experiencing those "dog days" of summer this July. In ancient times, the rising of the star system, Sirius, in astrology was connected to times of heat, drought, and mad dogs. That's why it is sometimes known as the Dog Star. We at Ram Meter hope you've been staying cool during these record breaking heat spikes. And make the most of your dog days with some of the great products from Ram Meter Inc.!


And you're in luck as we're glad to feature a new product line this month, Greenlee/HD Electric!



Greenlee/HDE is a recognized leading manufacturer of high-quality tools for the professional trades person. Carrying on in the tradition of the Greenlee brothers, Greenlee/HDE is dedicated to innovating and developing the next generation of solutions improving safety, ergonomics and ease of use for professional tradesmen and women. The Greenlee/HDE catalog offers a comprehensive product line for electrical trades from power distribution to residential electrical tools as well as the HVAC and Plumbing trades.

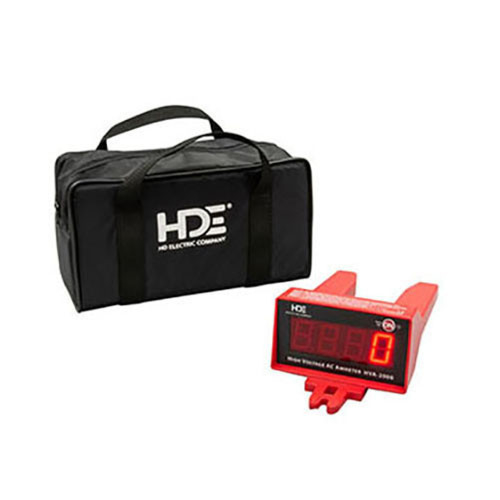

HD Electric HVA-2000 High Voltage Ammeter - 2000A/500 kV w/Soft Case

The HD Electric HVA-2000 is a high voltage digital ammeter designed for taking True RMS AC current measurements up to 2000 amps, 25-500Hz and can be used on system voltages up to 500kV. Equipped with the capability of taking spot-load studies at transformers or any mid-span location, as well as phase balance studies on primary or secondary lines, all within accuracy of 1%.

Features:

  • Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
  • Stores the last 4 readings
  • Dual measurement modes, peak hold and real time
  • Takes spot-load checks with ease
  • Verifies phases are balanced
  • Versatile for overhead and underground applications
  • Compact, lightweight design

Can't wait to get your hands on one? Check it out on our website TODAY!

HD Electric HVA-2000 High Voltage Ammeter - 2000A/500 kV w/Soft Case

HD Electric DVI-500T/K02 Digital Voltage Indicator w/Test Point Mode - 500 kV KIT02 w/Underground Bushing Probe & Proof Tester

The HD Electric Digital Voltage Indicators, DVI-500T/K02, is a single point instrument designed to read the voltage on a conductor up to 500kV line-to-ground. The large LED readout is easy to read on the end of a long hotstick (sold separately) and can be used on overhead lines or in underground applications with an underground bushing probe (included). The DVI emits an audible alarm when voltage above 100VAC is detected. It is very easy to use as there are no range selector switches or settings to be made – just contact the conductor and read the display.

Features:

  • DVI-500T/K02 includes: HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 Underground Bushing Probe, PT-DVI Proof Tester & CS-DVI-5 Carrying Case Measures voltage up to 500kv line-to-ground
  • Capacitive Test Point Mode
  • Voltage readout distinguishes between nominal and induced voltages
  • Audible indication when voltage is detected
  • Auto-shutoff and low battery indication features
  • Versatile for overhead and underground applications

Be sure to check out the HD Electric DVI-500T/K02 Digital Voltage Indicator w/Test Point Mode - 500 kV KIT02 w/Underground Bushing Probe & Proof Tester on our website NOW!

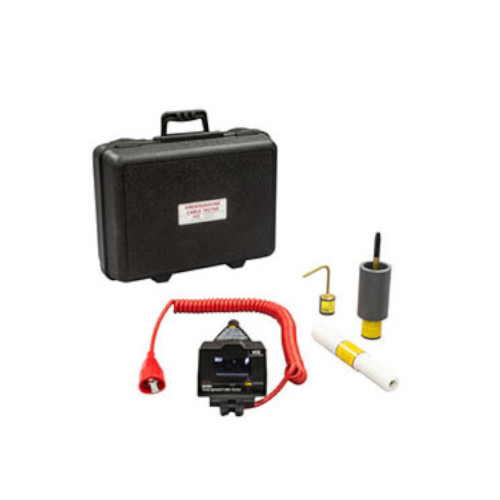

HD Electric UCT-8/K02 Underground Cable Tester KIT02 - 8 DCkV w/Hook Probe, Bushing Probe & Elbow Probe

The HD Electric UCT-8/K02 Underground Cable Fault Tester is a lightweight, one-piece operation for underground DC leakage current testing. This tool is used to test the de-energized primary shielded voltage cable for a fault. Test results are clearly displayed as an analog bar graph along with an indication of a good or faulted cable. A self-contained 8kV high voltage source powers the tester using a 9V lithium battery, making the UCT-8 a compact single hotstick operation tool for testing cable.

Features:

  • UCT-8/K02 includes: Overhead Brass Hook Probe, Bushing Probe, Elbow Probe & Carrying Case
  • Compact and lightweight solution for underground cable testing
  • DC Hi-Pot test of de-energized, shielded underground primary cable
  • No external power required - self-contained 8kVDC voltage source
  • Can be used up to a distance of 1500 ft (457m)
  • Clear and simple test results - analog bar graph and indication of good or faulted cable
  • Safety feature - measures AC voltage before converting to a DC voltage tester
  • Lightweight, single hot stick operation for testing cable

Looking for an underground DC leakage current tester for your application? Then check out the HD Electric UCT-8/K02 Underground Cable Tester KIT02 - 8 DCkV w/Hook Probe, Bushing Probe & Elbow Probe TODAY!

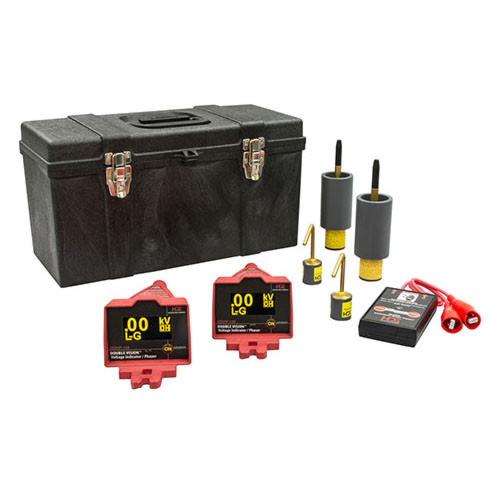

HD Electric DDVIP-138/K02 Double Vision® Dual Display Wireless Voltage Indicating Phaser KIT02 - 100V-138kV w/Proof Tester & Underground Bushing Probes

The HD Electric DDVIP-138/K02 Dual Display Voltage Indicating Phaser includes a pair of single stick line-to-ground voltage indicators that communicate with each other wirelessly. Both units are constructed with high strength molded housings, epoxy encapsulated high voltage resistors and a digital LED display. The DDVIP-138/K02 measures 50 Hz and 60 Hz AC RMS voltage from 100V to 80 kV line-to-ground and 100V to 138 kV line-to-line. The frequency is determined automatically.

Features:

  • DDVIP-138/K02 includes: (2) 025-OLPS-5 Overhead Hook Probes, (2) ASP-15/25 Underground Bushing Probes, (1) PT-DDVIP Proof Tester & CS-DDVM Carrying Case
  • Measures voltage from 100V to 138kV line-to-line
  • Can be used individually as voltage indicators or together for phasing operations up to 100 ft. (30m) apart
  • Two LED displays are automatically synchronized during phasing operations
  • Clear in-phase and out-of-phase indication
  • Versatile for overhead & underground applications
  • Capacitive Test Point and Peak Hold modes

Head on over to our website and get your very own HD Electric DDVIP-138/K02 Double Vision® Dual Display Wireless Voltage Indicating Phaser KIT02 - 100V-138kV w/Proof Tester & Underground Bushing Probes TODAY!

DID YOU KNOW?

Did you know that the Amprobe TIC 300 PRO is the go-to tool for underground crews servicing secondary power lines for a large US utility company in the Northeast. The crew’s work takes them down manholes under historic cities where the infrastructure is aging and the problems are frequent.

Check out our blog article titled Is it hot or not: Amprobe TIC 300 PRO Case Study to learn why utility crews trust the Amprobe TIC 300 PRO!

Check out our SURPLUS INVENTORY SALE and SAVE BIG on all sorts of electronic test equipment! Be sure to mention this ad when contacting us to purchase any of these items! *NOTE: Limited quantities! Pricing good while supplies last!
