Ram Meter Inc. August 2022 Newsletter

August 1st, 2022:
We have just released our August 2022 Newsletter. Read on to see what we have in store this month.

Introducing new products from Megger and Simpson, two brands that continue to innovate and improve upon their product functionality.

The demand for electric vehicles continues to increase rapidly. This has caused a ground swell of installations of new EV charging stations for public use across the country. Chargers need to go through routine inspections. These inspections help to assess their safety and alert the inspector if maintenance needs to be performed. This can be done by using the Megger's EVCC300 EV Charger Checker.

If you're looking for a battery tester for more than checking lead-acid and ion-lithium batteries take a look at Megger's BITE5. This unit also tests NiCD batteries.

Simpson Electric is known for its quality and expects great things from their 2 new digital multimeter series. Series 4001/4002/4003/4005/4006 Digital Portable Multimeters feature a rugged, dual display, 6600 count, with a wide selection of measurements. Series 5002/5003/5005/5006 features a high-resolution display, large range count, and is equipped with more than 30 different measurement functions.. Simpson Electric’s also introduces a NEW 1000A/400A Digital Power Clamp for measurement of AC/DC power and power quality parameters. This unit is specially designed with user safety and comfort in mind.

So beat the heat with these cool new products and as always, we at Ram Meter hope you're continuing to enjoy your summer!

Megger EVCC300 Electric Vehicle Charger Checker

The new EVCC300 introduces a new and convenient way of checking Electric Vehicle charge points. A simple all in one concept provides an easy to use solution to check both the safety and operation of level 1 and two phase level 2 EV chargers. The instrument is ideal for those wishing to perform a check on an EV charger following manufacture, installation or repair, or just part of a maintenance schedule / inspection.

Features:

  • Four important safety checks: PE touch pad, RPE test, Touch voltage test, and RCD / GFCI protection check
  • Nuisance charger supply tripping check. This test will help determine whether the EV charger user is likely to experience nuisance tripping of the RCD or GFCI.
  • The EVCC300 slowly increases ground / earth leakage current until the protective device trips to ensure it trips at the correct leakage current level. If the leakage current that trips the device is too low it will indicate either an issue with the device or there is already a high level of leakage present.
  • Four key EV charger operation checks: Proximity detection operation check, Control pilot operation check, Control pilot signal check, and EV charger output check

Looking for a way to check the safety of your Electric Vehicle charger? Then check out the Megger EVCC300 Electric Vehicle Charger Checker TODAY!

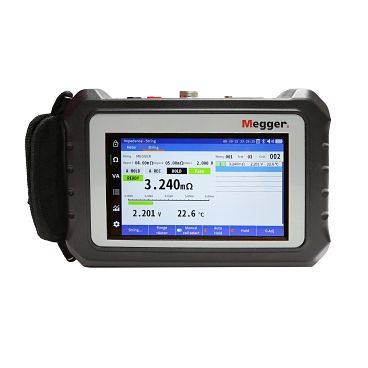

Megger BITE5 Battery Tester

The BITE5 is a battery tester that will test lead acid batteries, NiCD batteries as well as lithium-ion batteries. The BITE5 will measure and record battery voltage, impedance, and temperature. The BITE5 also supports discharge testing. It will measure the voltage and current throughout the discharge cycle. The BITE5 can also measure the impedance and temperature throughout the discharge cycle.

Battery impedance testing

The BITE5 will measure cell impedance, cell voltage, and temperature. The recorded data can be trended on the unit’s touch screen. View the trended data of each test or trend the data of each cell. Set pass, warning, and fail limits for voltage and impedance. Record the ripple voltage, ripple current, and float current and transfer the recorded data via USB or via an SD card to the PowerDB software, then create custom reports and automated analysis.

Battery discharge testing

The BITE5 will record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Measure the average impedance at the end of the commissioning test and use this as a limit for future impedance tests. Trend the recorded data on the BITE5 touch screen and view the trended data of each test, or trend the discharge of each cell. Transfer the recorded data via USB or via an SD card to the PowerDB software, then create custom reports.

Solsar systems

Measure and record combiner DC voltages. Measure the input and output of inverters. Test the lithium-ion batteries.

Head over to our website and get your very own Megger BITE5 Battery Tester TODAY!



Simpson Electric 4005 / 4006 Digital Portable Multimeter

Simpson Electric’s NEW Series 4005/4006 Digital Portable Multimeters feature a rugged, dual display, 6600 count, with a wide selection of measurements.

Features:

  • Direct and alternating voltages from 100μV … 1000V
  • Direct and alternating currents from 10μA … 10.00A
  • Resistance from 100mΩ… 60.00MΩ
  • High capacitance measurement from 1pF … 40.00 mF with zero correction
  • Frequencies from 10.00Hz … 10MHz
  • Diode measurement and continuity testing
  • Hold, relative and duty cycle (%) measurement
  • Temperature measurement with K type thermocouple
  • Peak value measurement
  • Dual display for increased efficiency

Can't wait to get your hands on one? Check it out on our website TODAY!

Simpson Electric 4005 / 4006 Digital Portable Multimeter

Simpson Electric 400A/1000A Digital Amp Power Clamp

Simpson Electric’s NEW 1000A/400A Digital Power Clamp is specially designed with user safety and comfort in mind, for measurement of AC/DC power and power quality parameters. The Clamp also features resistance, continuity, diode, and non-contact voltage detection.

Features:

  • LPF mode for accurate measurement at VFD
  • Built-in 3-phase power measurement with auto calculation
  • Horsepower (HP) measurement to check motors and energy measurement
  • Data hold function for hands-free operation
  • Backlit, dual display of simultaneous parameters for measuring input quantity
  • Durable design protects clamp from dust and water
  • Up to 49 individual harmonics to understand power quality
  • Rotational jaw to keep display in front and trigger at back to enhance user safety
  • Double mold casing for firm grip
Be sure to check out our Simpson Electric 400A/1000A Digital Amp Power Clamp on our website NOW!
